Slickline
Services
Slickline Basic Services
As a trusted and reliable premier wireline company, Kodiak lives up to its reputation by providing custom and personalized solutions for complex client needs through its high-quality slickline services.

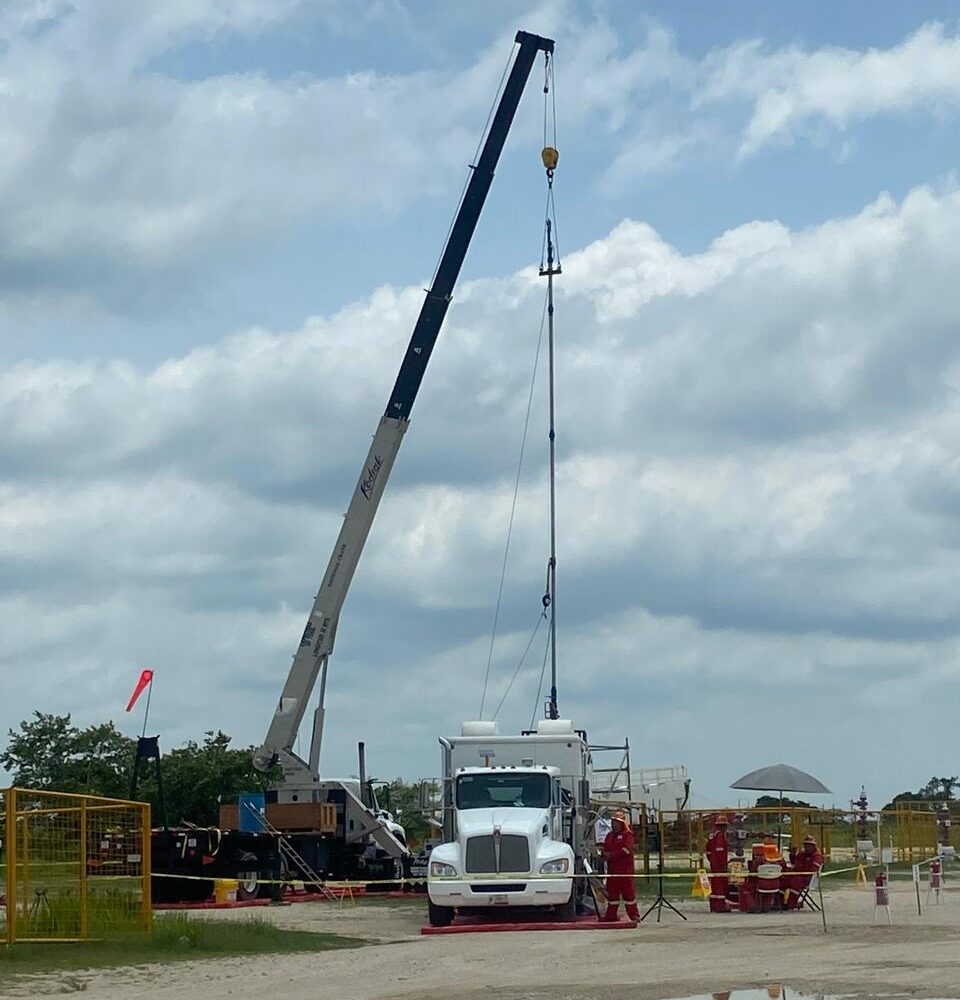

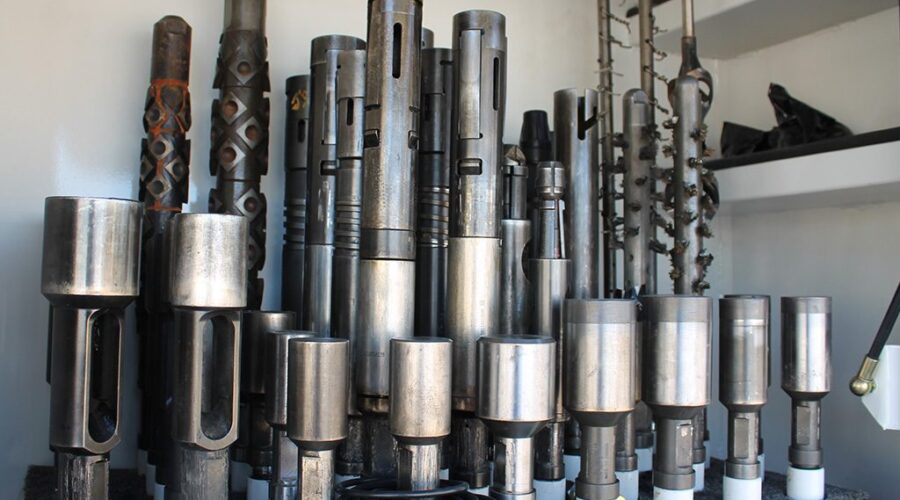

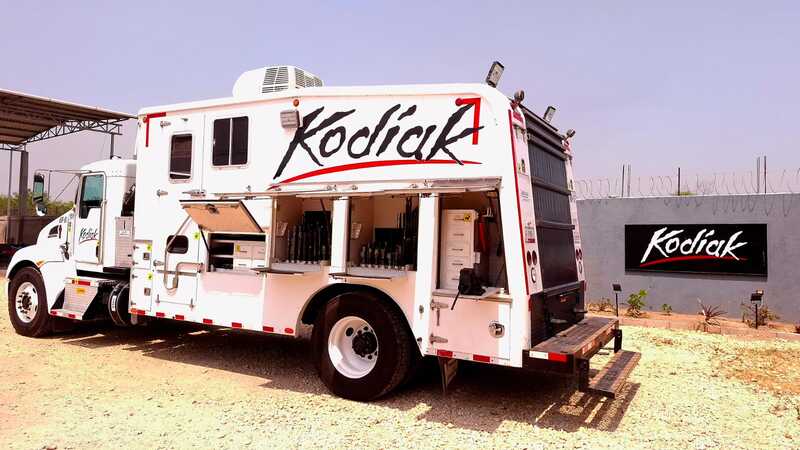

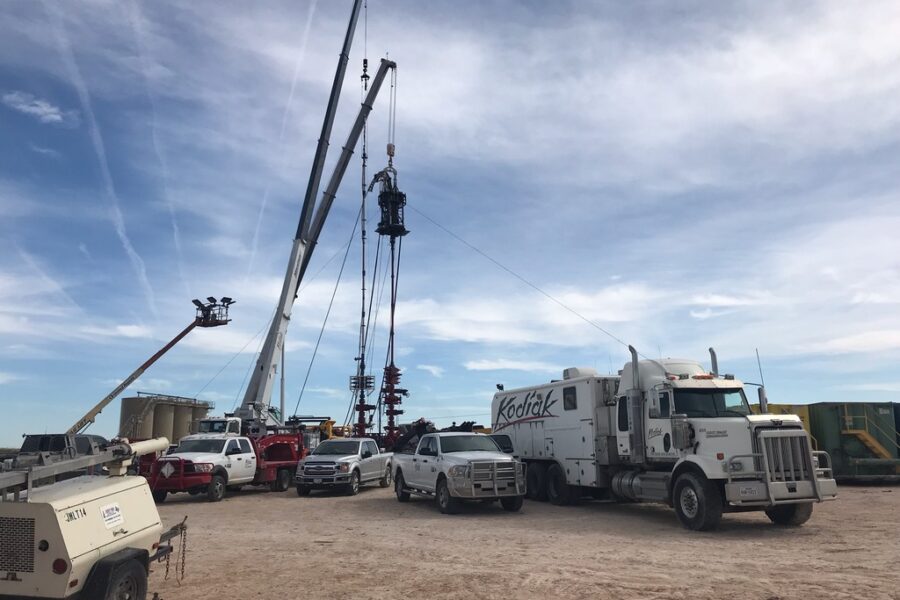

Kodiak offers a complete, well maintained fleet of slickline units in various sizes, from ultralight to heavyduty, and a wide selection of line size choices ranging from .160/.150/.140/ .125/.108/.092/.066. Slickline is very beneficial to the easy of deployment and well control while servicing wells.
Downhole Shut-in Tool
Benefits
- The Smart Shut-In Tool (SST) utilizes multi-cycle options, to allow the user to perform multiple cycles when using our Downhole Shut-In Tools for different types of tests.
- We also incorporate multiple seals to virtually reduce any leakage. Our Flow area is larger than the inner diameter of the lock the Multi-Cycle Downhole Shut- In Tool is connected, in order to prevent our tool from being a choke.
- Innovative flow passages are designed to optimize flow, virtually eliminating the "choke" effect.
- All Stainless-Steel construction for maximum corrosive resistance and durability Fast closing time - less than 60 seconds
- Internal test firmware delivers audible signal and valve movement to confirm proper operation prior to use downhole
- Switch selectable shut and open sequences without using a computer.
- Custom computer programming with up to 20 steps for test
- Mechanical Equalizer Provided
- Shock Reducing and Centralizing Hardware
- Fast closing time - less than 60 seconds
Downhole Shut-in Tool
The Downhole Shut-In Tool (DHSIT or SST) is an electromechanical tool that allows the user to shut-in a well in the wellbore. Shutting a well in the wellbore, typically above the perforations, helps reduce the effect due to wellbore storage. This allows the user to capture pertinent virgin information as to how the well is performing. The data captured via Downhole Memory Pressure gauges can provide accurate characterization of a well. Downhole shut-in during production of a well provides transient data analysis and reservoir characterization.
The Downhole Electronic Shut-In Tool Systems automatically shuts-in your well near the sand face or perforations, removing wellbore storage effects that can reduce data quality while minimizing costly production downtimes.
Operational Process
- Tool runs in the Hole open (Figure 1)
- After X time (programmed from computer or selectable knob setting), the valve will close, shutting off the well (Figure 2)
- After Y time (programmed from computer or selectable knob setting), the valve opens allowing the well to flow again (Figure 3)
Memory Logging
With Slickline or Braided Lines, we can perform any Memory Logging services such as:

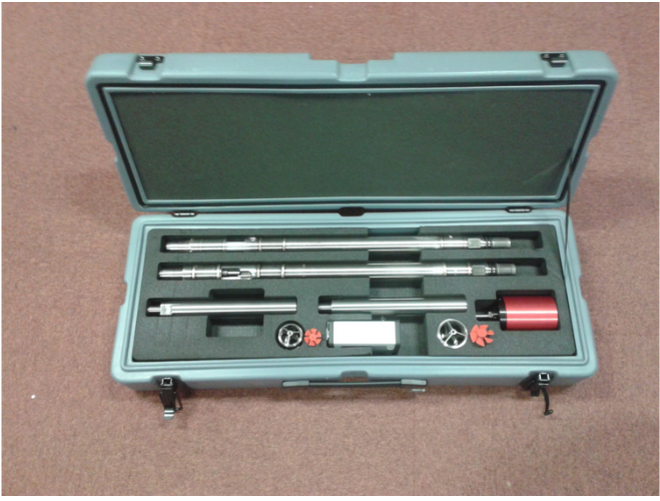

- PRODUCTION LOGGING
- QUAD NEUTRON
- CAMERA LOGS
- CEMENT BOND LOGS
- WELL INTEGRITY LOGS
- PERFORATING
- PIPE RECOVERY
- PLUG SETTING
- TRACTORING
Electronic Memory Recorders
EMRs come in a variety of sizes. From ”0.5” to 1.25” ranging from 10000 PSI strain gauges to 15000 psi Quartz gauges. This coupled with plugs, locks or shut in tools are ideal for all your downhole formation monitoring requirements.
